API600 CLASS 300 OS&Y CAST STEEL GATE VALVE

Back：API 600 CLASS 600 OS&Y CAST STEEL GATE VALVE Next：API600 CLASS 150 OS&Y CAST STEEL GATE VALVE

API600 CLASS 300 OS&Y CAST STEEL GATE VALVE details:

TECHNICAL REQUIREMENT :
    ● Design and Manufacture Conform to API 600
    ● Flange dimensions Conform to ASME B16.5
    ● Face to Face dimensions Conform to ASME B16.10
    ● Testing Conform to API 598
    ● Driving mode: hand wheel, bevel gear, electric

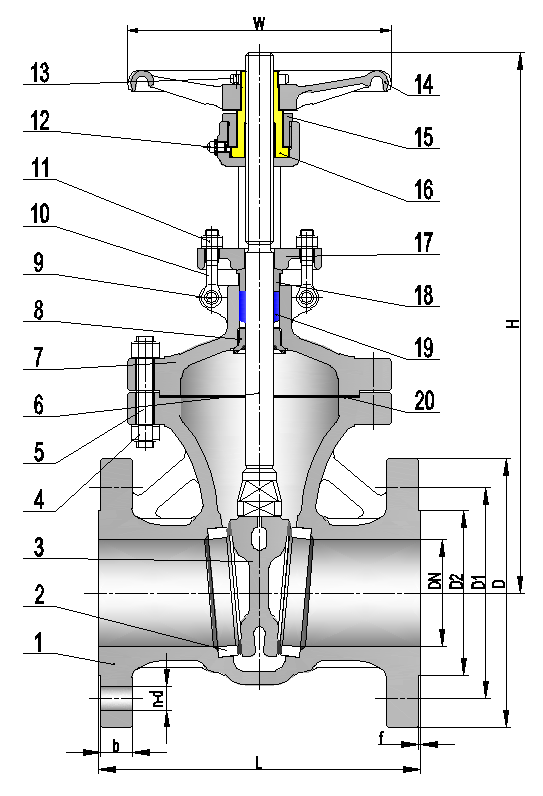

Materials of parts
No.	Part Name	Material
1	Body	A216-WCB
2	Seat Ring	A105+CR13
3	Wedge	A216-WCB+CR13
4	Bonnet Stud Nut	A194-2H
5	Bonnet Stud	A193-B7
6	Stem	A182-F6a
7	Bonnet	A216-WCB
8	Stem Back Seat	A276-420
9	Eyebolt pin	Carbon Steel
10	Eyebolt	Carbon Steel
11	Eyebolt Nut	Carbon Steel
12	Grease Fitting	Brass+Steel
13	Handwheel Nut	Carbon Steel
14	Handwheel	Ductile Iron
15	Yokesleeve Jam nut	Carbon Steel
16	Yokesleeve	Bronze
17	Gland Flange	A216-WCB
18	Gland	A276-420
19	Packing	Graphite
20	Bonnet Gasket	Graphite+304

Dimensions data (mm)


NPS	2	2½	3	4	5	6	8	10	12	14	16	18	20
L	216	241	283	305	381	403	419	457	502	762	838	914	991
D	165	191	210	254	279	318	381	445	521	584	648	711	775
D1	127	149.4	168.1	200.2	235	269.7	330.2	387.4	450.9	514.4	571.5	628.7	685.8
D2	92	105	127	157	186	216	270	324	381	413	470	533	584
b	20.9	23.9	26.9	30.4	33.9	35.4	39.9	46.4	49.4	52.4	55.8	58.9	61.9
n-d	8-19	8-22	8-22	8-22	8-22	12-22	12-25	16-28	16-32	20-32	20-35	24-35	24-35
f	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6
H	345	387	430	513	583	655	800	968	1108	1212	1350	1490	1665
W	200	200	250	250	300	350	400	450	502	500	600	600	650
