DIN 3356 PN40 CAST STEEL GLOBE VALVE

DIN 3356 PN40 CAST STEEL GLOBE VALVE
Back：DIN 3356 PN25 CAST STEEL GLOBE VALVE  Next：DIN STEEL GLOBE VALVE

DIN 3356 PN40 CAST STEEL GLOBE VALVE details:

TECHNICAL REQUIREMENT :
    ● Design and Manufacture  Conform to DIN EN 13709 、DIN 3356
    ● Flange dimensions  Conform to EN1092-1 PN40
    ● Face to Face  dimensions Conform to EN558-1 list 1
    ● Testing Conform to  EN12266-1




Materials of parts
No. Part Name Material
1 Body GS-C25
2 Disk 2Cr13
3 Seat ring 1Cr13
4 Stem 1Cr13
5 Bellow 304/316
6 Bonnet GS-C25
7 Packing Graphite
8 Stem nut QAl9-4
9 Handwheel Steel

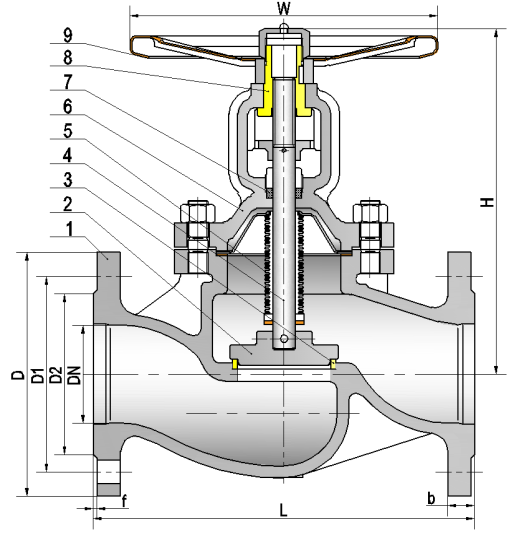

Dimensions data (mm)

DN 15 20 25 32 40 50 65 80 100 125 150 200
L 130 150 160 180 200 230 290 310 350 400 480 600
D 95 105 115 140 150 165 185 200 235 270 300 375
D1 65 75 85 100 110 125 145 160 190 220 250 320
D2 45 58 68 78 88 102 122 138 162 188 218 285
b 16 18 18 18 18 20 22 24 24 26 28 34
n-d 4-14 4-14 4-14 4-18 4-18 4-18 8-18 8-18 8-22 8-26 8-26 12-30
f 2 2 2 2 2 2 2 2 2 2 2 2
H 221 221 232 236 245 254 267 283 348 402 456 605
W 140 140 160 160 180 200 250 300 350 400 450 500
