BS750 Fire Hydrant
Back：[Fire Hydrant] Next：Dry Barrel Fire Hydrant
BS750 Fire Hydrant details:
Standard：AWWA C 502;BS750
Pressure:250PSI
Material:cast iron
UL/FM approval
TECHNICAL REQUIREMENT :
● Design and Manufacture Conform to BS750 Type 2c
● Flange to EN1092-2 PN16
● Fusion bonded epoxy coated inside and out
● Bottom drain connection

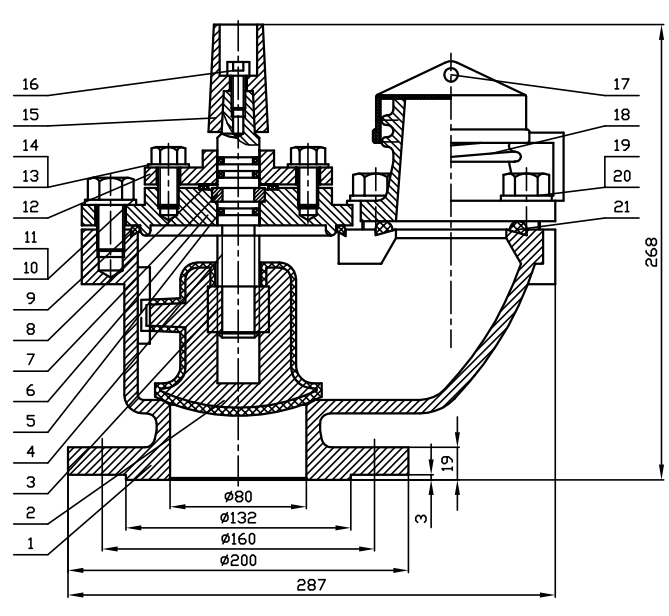

| No. | Part Name | Material |
| 1 | Body | ASTM A536 65-45-12 |
| 2 | Wedge | ASTM A536 65-45-12+EPDM |
| 3 | Wedge Nut | ASTM B148 C95400 |
| 4 | Stem | ANSI 420 |
| 5 | O-Ring | NBR |
| 6 | Bonnet | ASTM A536 65-45-12 |
| 7 | Thrust Collar | ASTM B16 |
| 8 | Minipad | NYL |
| 9 | Gasket | NBR |
| 10 | Bolt | ANSI 201 |
| 11 | Washer | ANSI 201 |
| 12 | Gland | ANSI 201 |
| 13 | Bolt | ASTM A536 65-45-12 |
| 14 | Washer | ANSI 201 |
| 15 | Cap | ASTM A536 65-45-12 |
| 16 | Bolt | ANSI 201 |
| 17 | Dust Cap | NYL |
| 18 | Round | ASTM B16 |
| 19 | Bolt | ANSI 201 |
| 20 | Washer | ANSI 201 |
| 21 | O-Ring | NBR |
