Dry Barrel Fire Hydrant
Dry Barrel Fire Hydrant details:
|
TECHNICAL REQUIREMENT :
● Design Conform to AWWA C502
● Working pressure:250PSI
● One pump nozzle,4.5-4NH thread.Two hose nozzle,2.5-7.5NH thread.Other size thread is available.
● 6" mechanical joint designed to ANSI/AWWA C153/A21.53.
|
 |
|

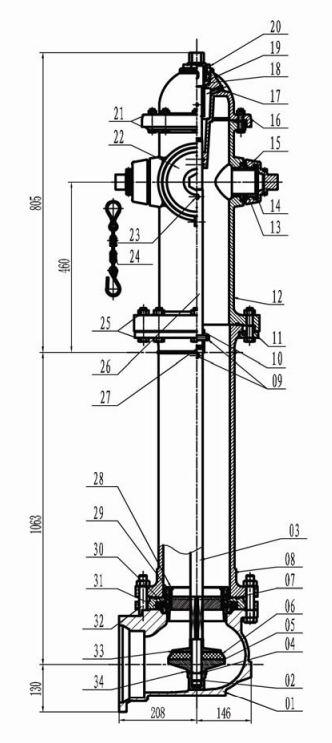

| No. |
Part Name |
Material |
| 01 |
Mechanical Connector |
ASTM A536 65-45-12 |
| 02 |
Locking Nut |
ASTM A536 65-45-12 |
| 03 |
Connectiong Rod |
ANSI 1045 |
| 04 |
Locking Nut Gasket |
EPDM |
| 05 |
Tray |
ASTM A536 65-45-12 |
| 06 |
Sealed Tubber Sheet |
EPDM |
| 07 |
Guid Bracket |
ASTM B62 |
| 08 |
Connectiong Cylinder |
ASTM A536 65-45-12 |
| 09 |
Perforated Cylindrical Pin |
ANSI 1045 |
| 10 |
Connecting Rod Sleeve |
ANSI 1045 |
| 11 |
Clamp For Connection Tube |
ASTM A536 65-45-12 |
| 12 |
Main Body On Ground |
ASTM A536 65-45-12 |
| 13 |
65 Connector |
ASTM B62 |
| 14 |
65 Cover Gasket |
EPDM |
| 15 |
65 Cover |
ASTM A536 65-45-12 |
| 16 |
Upper End Cover |
ASTM A536 65-45-12 |
| 17 |
Thread Plug |
ASTM B62 |
| 18 |
Screw Stem Nut |
ASTM B62 |
| 19 |
Screw Nut Gasket |
ASTM B62 |
| 20 |
Screw Nut Seat |
ASTM B62 |
| 21 |
Bolt&Nut |
ANSI 1035 |
| 22 |
100 Cover |
ASTM A536 65-45-12 |
| 23 |
Cylindrical Pin |
ANSI 1045 |
| 24 |
Cover Chain |
ANSI 1045 |
| 25 |
Bolt&Nut |
ANSI 1035 |
| 26 |
Screw Stem |
ANSI 1045 |
| 27 |
Cushion Rubber |
EPDM |
| 28 |
Pressure Relief Valve |
ASTM B62 |
| 29 |
Seat |
ASTM B62 |
| 30 |
Seat ring |
ASTM B62 |
| 31 |
Seat fixing plate |
ASTM A536 65-45-12 |
| 32 |
Bolt&Nut |
ANSI 1035 |
| 33 |
Platen |
ASTM A536 65-45-12 |
| 34 |
Check turn gasket |
ASTM A283-B |
|
